 Product >> MEMS Switch >> 1XN MEMS Optical Switch
MEMS Optical Switch,MEMS Switch
Name:

1XN MEMS Optical Switch
Class:
 MEMS Switch
Type:
 MEMS Optical Switch,MEMS Switch

MEMS Optical Switch,MEMS Switch Specification

Fiberer Rohs

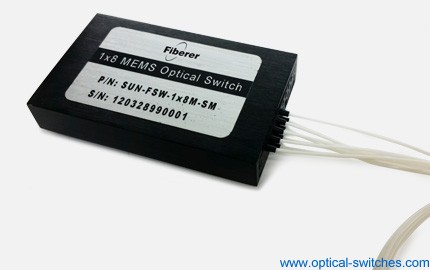

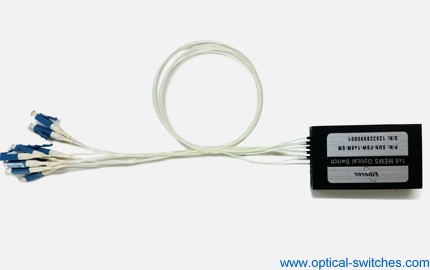

1x8 MEMS Optical Switch   1x8 MEMS Switch

MEMS 1×N Fiber Optic Switch,MEMS Optical Switch- Specifications
Parameters
Unit
Fiberer-FSW-MEMS-1×N(≤24)
Wavelength Range
nm
SM
MM
1310±20              or 1550±20            or 1625±20
850±20
or 1310±20
or 1550±20
Test Wavelength
nm
1310/1550/1625
850/1310/1550
Insertion Loss
dB
1.0(TYP)  1.2(MAX) N≤16               1.2（TYP） 1.8(MAX) N≤24
0.8（TYP） 1.0(MAX)
N≤8
1.0（TYP） 1.5（MAX）
N≤12
WDL
dB
≤0.3
≤0.3
PDL
dB
≤0.15
≤0.15
Return Loss
dB
≥40
≥25
Crosstalk
dB
≥50
≥30
Repeatability
dB
≤±0.05
≤±0.05
Power Supply
V
5~12
Durability
Cycles
≥109
Switch Time
ms
≤20
Transmission Power
mW
≤500
Operating Temperature
℃
-5~+70
Storage Temperature
℃
-40~+85
Dimension
mm
(Type A)  39.1(L) x 24.7(W) x 11(H) ±0.2
(Type B)  65(L) x 24.7(W) x 11(H) ±0.2
Note:   1  Within operating temperature and SOP.
             2  Excluding connectors.

 MEMS 1×N Fiber Optic Switch,MEMS  Optical Switch - Dimension

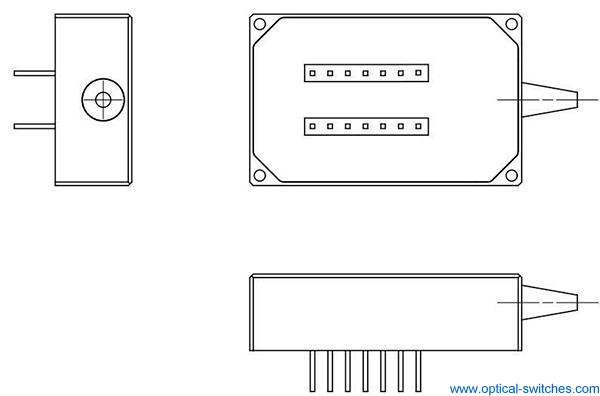

MEMS 1XN Fiber Optic Switch Dimension
Package Type A
Tube Type:250um, N≤24

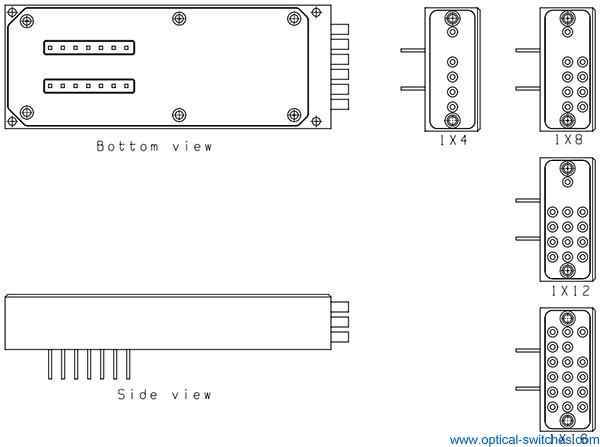

MEMS 1XN Optical Switch Dimension

Package Type B
 Tube Type:900um, N≤16

MEMS 1×N Fiber Optic Switch,MEMS  Optical Switch - Pin Configurations
Pin
Signal Name
Description
I/O
specifications
Unit
1
NC
NC



2
VCC
DC Power Supply
Power
5
VDC
3
STROBE
Strobe signal, The falling edge of the effective
IN
TTL

4
GND
Ground
Power


5
D0
Channel D0
IN
TTL

6
D1
Channel D1
IN
TTL

7
D2
Channel D2
IN
TTL

8
NC
NC



9
TXD
Serial Port Send
IN
TTL

10
RXD
Serial Port Receive
IN
TTL

11
GND
Ground
Power


12
NC
NC



13
D3
Channel D3
IN
TTL
3
14
/RESET
Active-low reset
IN
TTL


MEMS 1×N Fiber Optic Switch,MEMS  Optical Switch- Ordering Information:
Fiberer-FSW-MEMS-1xN- A- B-C-D-E-F-G
N
A
B
C
D
E
F
G
Output
Number
Fiber Type
Package Type
Test Wavelength
Tube Type
Fiber Length
(Include connector)
Connector
Interface
4:4
8:8
12:12
16:16
20:20
24:24
SM: SM, 9/125
M5:MM,50/125
M6:MM,62.5/125
X: Others
A:Type A
B:Type B
850:850±20nm
1300:1300±20nm
8513:850&1300±20nm
1310: 1310±20nm
1550: 1550±20nm
1315:1310&1550±20nm
1625:1625±20nm
X:Others
25:250um(Type A)
90:900um(Type B)
X: Others
05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
LP: LC/PC
LA: LC/APC
X: Others
MS1：TTL/RS232
MS2：TTL/ I2C
MS3：TTL/I2C/
RS232
