MXN Fiber Optic Switch,MXN Optical Switch
Name:

MXN Fiber Optic Switch

Class:
Multi channel Optical Switch
Type:
MXN Fiber Optic Switch

MXN Fiber Optic Switch,MXN Optical Switch Specification


Fiberer Rohs
MXN Fiber Optic Switch,MXN Optical Switch - Features

•Low Loss and High Reliability
•Parallel Interface (TTL)
•Modularized Design
•Epoxy-free on Optical Path



MXN Fiber Optic Switch,MXN Optical Switch - Applications
•Ring Network
•Remote Monitoring in Optical Network
•Testing of Fiber, Optical Component


MXN Fiber Optic Switch,MXN Optical Switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

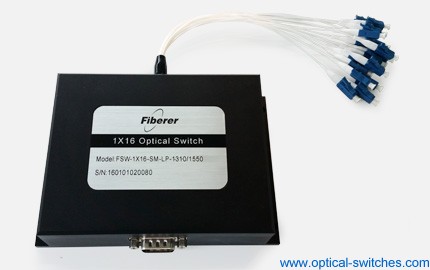

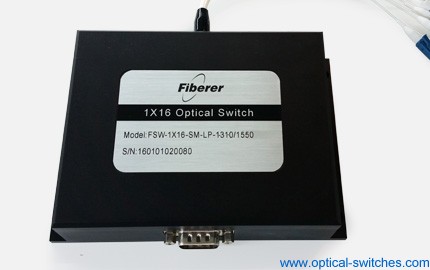

1x16 Fiber Optic Switch   1x16 Optical Switch

MXN Fiber Optic Switch,MXN Optical Switch - Specifications

Parameters

Unit

Fiberer-FSW-MXN

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss

dB

Typ: 1.2   Max: 1.5

Return Loss

dB

MM ≥ 30   SM ≥ 50

Crosstalk

dB

≥ 55

PDL

dB

≤ 0.05

WDL

dB

≤ 0.25

TDL

dB

≤ 0.25

Repeatability

dB

≤ ±0.05

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤ 10 (Sequence switch time of adjacent channel)

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

135X95X32 (M≤3, N≤16)

MXN Fiber Optic Switch,MXN Optical Switch - Pin Configurations

DB-9 male connector  (M≤3, N≤16)

Pin No.

Signal Name

I / O

Description

1

A0

Input

TTL, Input Channel selection bit 0

2

A1

Input

TTL, Input Channel selection bit 1

3

D0

Input

TTL, Output Channel selection bit 0

4

D1

Input

TTL, Output Channel selection bit 1

5

D2

Input

TTL, Output Channel selection bit 2

6

D3

Input

TTL, Output Channel selection bit 3

8

GND

Input

Ground

7, 9

VCC

Input

5.0±5% VDC Power Supply (max 800mA)


MXN Fiber Optic Switch,MXN Optical Switch - Channel Selection Table

M = 2

N = 9

A1

A0

Active Channel (Input)

D3

D2

D1

D0

Active Channel (Output)

0

0

Light close

0

0

0

0

1

0

1

COM1

0

0

0

1

2

1

0

COM2

0

0

1

0

3

1

1

Hold

0

0

1

1

4




0

1

0

0

5




0

1

0

1

6




0

1

1

0

7




0

1

1

1

8




1

0

0

0

9




Others

Hold


MXN Fiber Optic Switch,MXN Optical Switch - Optical Route

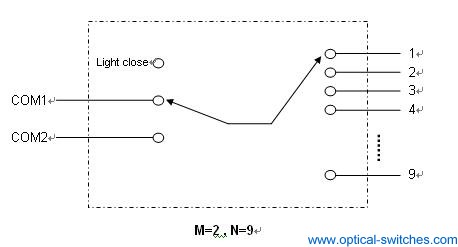

MXN Optical Switch Optical Route

MXN Fiber Optic Switch,MXN Optical Switch - Dimension

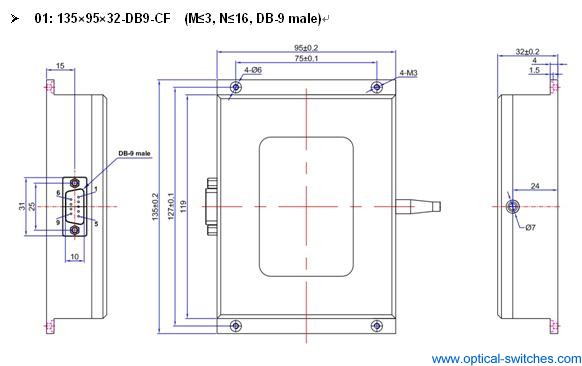

MXN Optical Switch Dimension

MXN Fiber Optic Switch,MXN Optical Switch - Ordering Information: Fiberer-FSW-MXN-A-B-C-D-E

M,N

A

B

C

D

E

Channel

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

M, N=
1
2
3

SM: SM, 9/125
M5: MM, 50/125
M6: MM, 62.5/125
X: Others

850: 850nm
1310: 1310nm
1550: 1550nm
1310/1550:1310/1550nm
X:Others

90: 900um
20: 2.0mm
30: 3.0mm
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others
