 Product >> Fiber Optic Switch >> 8 add 1 Fiber Optic Switch

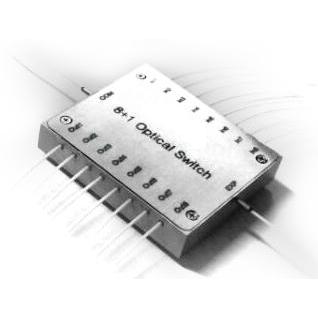

8+1 Fiber Optic Switch,8+1 Optical Switch
Name:

8 add 1 Fiber Optic Switch
Class:
 Fiber Optic Switch
Type:
 8+1 Fiber Optic Switch

8+1 Fiber Optic Switch,8+1 Optical Switch Specification

Fiberer Rohs
8+1 Fiber Optic Switch, 8+1 Optical Switch- Specification
8+1 optical switch
Parameters
Unit
Fiberer-FSW-8+1
Test Wavelength
nm
1550
Insertion Loss 1, 2
dB
Typ: 0.8    Max: 1.0
Return Loss 1, 2
dB
�� 50
Crosstalk 1
dB
�� 55
PDL
dB
��0.15
Repeatability
dB
�ܡ�0.05
Operating Voltage
V
5.0��0.5
Switch Type

Latching
Voltage Pulse Width(Latching)
ms
Typ:20
Durability
Cycles
�� 10 Million
Switching Time

��8
Optical Power
mW
��500
Operating Temperature
��
-10 ~ +70
Storage Temperature
��
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g

Dimension
mm
(L)56.2��(W)48.5��(H)10.0 ��0.2
Note:   1  Within operating temperature and SOP.
2  Excluding Connectors.

8+1 Fiber Optic Switch, 8+1 Optical Switch- Pin Configurations
Optical Route
Relay
Electric Drive
Status Sensor

Pin1
Pin5
Pin6
Pin10
Pin2-3
Pin3-4
Pin7-8
Pin8-9
COM-EXP
(STA 0)
Relay
1,2,3,4,5,6,7,8
-
-
GND
V+
Close
Open
Open
Close
COM- Out1
(STA 1)
Relay
2,3,4,5,6,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 1
V+
GND
-
-
Open
Close
Close
Open
COM- Out2
(STA 2)
Relay
1,3,4,5,6,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 2
V+
GND
-
-
Open
Close
Close
Open
COM- Out3
(STA 3)
Relay
1,2,4,5,6,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 3
V+
GND
-
-
Open
Close
Close
Open
COM- Out4
(STA 4)
Relay
1,2,3,5,6,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 4
V+
GND
-
-
Open
Close
Close
Open
COM- Out5
(STA 5)
Relay
1,2,3,4,6,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 5
V+
GND
-
-
Open
Close
Close
Open
COM- Out6
(STA6)
Relay
1,2,3,4,5,7,8
-
-
GND
V+
Close
Open
Open
Close
Relay 6
V+
GND
-
-
Open
Close
Close
Open
COM- Out7
(STA 7)
Relay
1,2,3,4,5,6,8
-
-
GND
V+
Close
Open
Open
Close
Relay 7
V+
GND
-
-
Open
Close
Close
Open
COM- Out8
(STA 8)
Relay
1,2,3,4,5,6,7
-
-
GND
V+
Close
Open
Open
Close
Relay 8
V+
GND
-
-
Open
Close
Close
Open

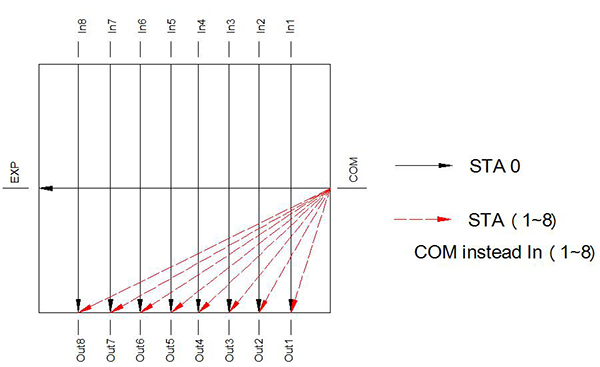

8+1 Fiber Optic Switch, 8+1 Optical Switch - Optical Route
8+1 Optical Switch Optical Route
8+1 Optical Switch - Optical Route

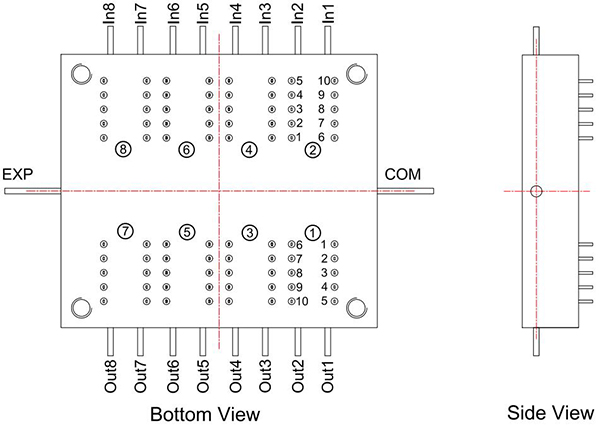

8+1 Fiber Optic Switch, 8+1 Optical Switch - Dimension
8+1 Fiber Optic Switch, 8+1 Optical Switch - Dimension

8+1 Fiber Optic Switch, 8+1 Optical Switch - Electrical Specification
Specifications
Voltage
Current
Resistance
5V   latching
4.5~5.5 V
36~44 mA
125 ��

8+1 Fiber Optic Switch, 8+1 Optical Switch - Ordering Information:
Fiberer-FSW-8+1-A-B-C-D-E-F-G
A
B
C
D
E
F
G
Fiber Type
Operating
Voltage
Switch Type
Test Wavelength
Tube Type
Fiber Length
(Include connector)
Connector
SM: SM, 9/125
5: 5V
L: Latching
1550: 1550nm
90:900um
10: 1.0m��5cm
X: Others
OO:None

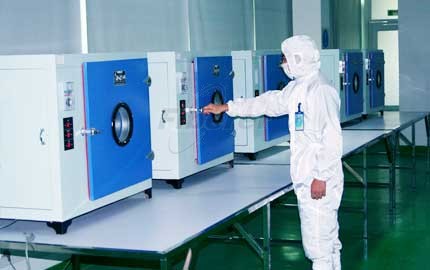

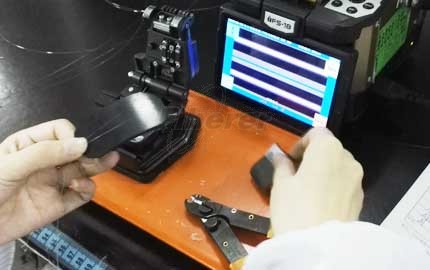

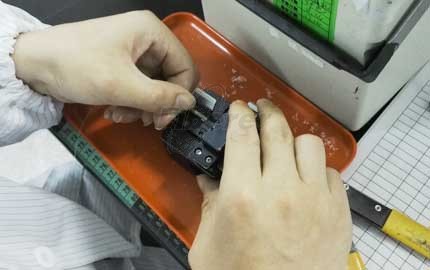

8 add 1 Fiber Optic Switch line    8 add 1 Optical Switch Making   8 add 1 Fiber Optic Switch Engineer   8 add 1 Optical Switch Components






Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.

Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
