Mini M1×3 or M1×4 Fiber Optic Switch
Name:

1X3 1X4 Mini Optical Switch

Class:
Mini Optical Switch
Type:
1X3 1X4 Mini Optical Switch

Mini M1×3 or M1×4 Fiber Optic Switch Specification

Click here to View Formal Price(993 pcs are paid)

Fiberer Rohs

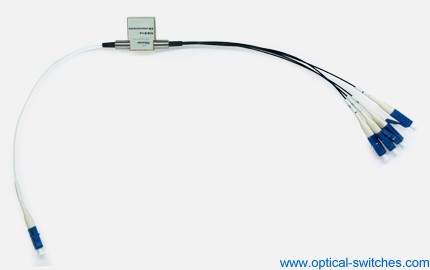

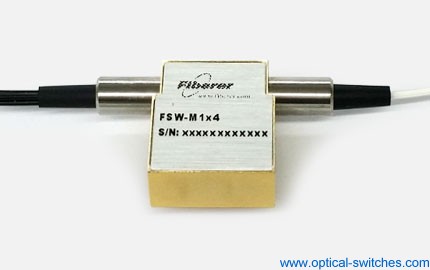

Mini 1x4 Fiber Optic Switch   Mini 1x4 Optical Switch

Mini M1×3 or M1×4 Fiber Optic Switch,M1×3 or M1×4 Optical Switch- Specifications
Parameters
Unit
M1×3 or M1×4
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
M1×3
Type: 0.6    Max: 0.8
M1×4
Type: 0.8   Max: 1.0
Return Loss 1, 2
dB
≥ 50
Crosstalk 1
dB
≥ 55
PDL
dB
≤0.1
WDL
dB
≤0.25
Repeatability
dB
≤±0.05
Operating Voltage
V
3.0  or  5.0
Voltage Pluse Width(Latching)
ms
≥ 20
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating
Temperature
-20 ~ +70
Storage
Temperature
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L )20x(W)17.6x(H)8±0.2
Note:   1  Within operating temperature and SOP.
             2  Excluding connectors.

Mini M1×3 or M1×4 Fiber Optic Switch,M1×3 or M1×4 Optical Switch- Pin Configurations
Type
State
Optical Route
Electric Drive
Status Sensor
M1X3




Pin 2-3
Pin 3-4
Pin 2-3
Pin 3-4
Pin 1
Pin 8
Pin 1
Pin 8
Pin6-7
Pin 5-6
Pin 6-7
Pin 5-6
Latching
A
COM-P1
GND
V+
GND
V+
Close
Open
Close
Open
B
COM-P2
V+
GND
GND
V+
Open
Close
Close
Open
C
Light close
GND
V+
V+
GND
Close
Open
Open
Close
D
Light close
V+
GND
V+
GND
Open
Close
Open
Close
Non-
Latching
A
COM-P1
-
-
-
-
Close
Open
Close
Open
B
COM-P2
V+
GND
-
-
Open
Close
Close
Open
C
Light close
-
-
V+
GND
Close
Open
Open
Close
D
Light close
V+
GND
V+
GND
Open
Close
Open
Close

Type
State
Optical Route
Electric Drive
Status Sensor
M1X4




Pin 2-3
Pin 3-4
Pin 2-3
Pin 3-4
Pin 1
Pin 8
Pin 1
Pin 8
Pin6-7
Pin 5-6
Pin 6-7
Pin 5-6
Latching
A
COM-P1
GND
V+
GND
V+
Close
Open
Close
Open
B
COM-P2
V+
GND
GND
V+
Open
Close
Close
Open
C
COM-P3
GND
V+
V+
GND
Close
Open
Open
Close
D
COM-P4
V+
GND
V+
GND
Open
Close
Open
Close
Non-
Latching
A
COM-P1
-
-
-
-
Close
Open
Close
Open
B
COM-P2
V+
GND
-
-
Open
Close
Close
Open
C
COM-P3
-
-
V+
GND
Close
Open
Open
Close
D
COM-P4
V+
GND
V+
GND
Open
Close
Open
Close
Mini M1×3 or M1×4 Fiber Optic Switch,M1×3 or M1×4 Optical Switch - Optical Route
M1×3
State A
State B
State C
State D
Mini 1X3 Fiber Optic Switch Optical Route
Mini 1X3 Optical Switch Optical Route
Mini 1X3 Fiber Optic Switch Optical Route
Mini 1X3 Optical Switch Optical Route

M1×4
State A
State B
State C
State D
Mini 1X4 Fiber Optic Switch Optical Route
Mini 1X4 Optical Switch Optical Route
Mini 1X4 Fiber Optic Switch Optical Route
Mini 1X4 Optical Switch Optical Route

Mini M1×3 or M1×4 Fiber Optic Switch,M1×3 or M1×4 Optical Switch- Dimension

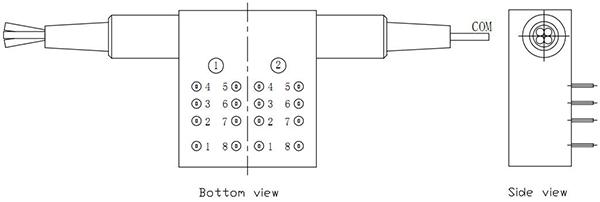

 Mini 1X3 1X4 Fiber Optic Switch Dimension
                                                                  COM:White    OTHERS:Black

Mini Fiber Optic Switch,M1×3 or M1×4 Optical Switch- Electrical Specification
Specifications
Voltage
Current
Resistance
5V   latching
4.5~5.5 V
22.2(±10%) mA
202.5(±10%) Ω
5V   non-latching
4.5~5.5 V
31(±10%) mA
145(±10%) Ω
3V   latching
2.7~3.3 V
33.3(±10%) mA
90(±10%) Ω
3V   non-latching
2.7~3.3 V
46.7(±10%) mA
64.2(±10%) Ω

Mini M1×3 or M1×4 Fiber Optic Switch,M1×3 or M1×4 Optical Switch Ordering Information:
Fiberer-FSW-A-B-C-D-E-F-G-H
A
B
C
D
E
F
G
H
Optical Switch Type
Fiber Type
Operating Voltage
Switch Type
Test Wavelength
Tube Type
Fiber Length
(Include connector)
Connector
M1×3
M1×4
SM: SM, 9/125
3: 3V
5: 5V
L: Latching
N: Non-latching
1310: 1310nm
1550: 1550nm
1310/1550: 1310/1550nm
X:Others
25:250um
90:900um
X: Others
05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
LP: LC/PC
LA: LC/APC
X: Others

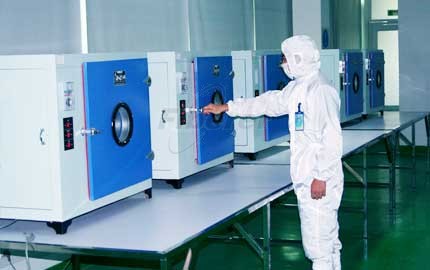

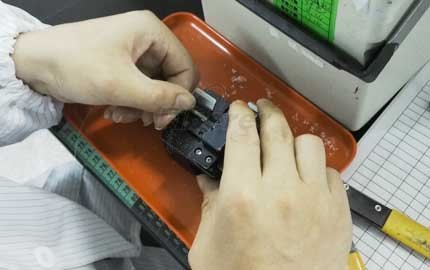

Mini 1x4 Optical Switch Production line   Mini 1x4 Fiber Switch Testing   Mini 1x4 Optic Switch Engineer   Mini 1x4 Fiber Optic Switch components




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.

Order Now:
 Mini M1×3 or M1×4 Fiber Optic Switch   (993 pcs are paid)

**Please click 'getOrder' or 'AddToCart' button to get the order(invoice) document directly.
**Shipment charge and lead time will be signed clearly in the invoice after finishing the order.
Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews

Description Please Select: Formal Price Qty. AddToCart
Mini Fiber Optic Switch, Mini 1x3, 3V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 3V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 3V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 3V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 3V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 3V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x3, 5V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 450/pcs.
1 pcs, USD 490/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 3V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

Mini Fiber Optic Switch, Mini 1x4, 5V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 600/pcs.
1 pcs, USD 640/pcs.
FOB ShenZhen

If not vote,please vote,thanks!
What do you think of fiberer?
Price is good and competitive.
Price need to be lower.
Order is convenient on website.
Order is slow and not convenient on website.
Fiberer is trusty.
I need to know more from profile.


Print   |    Add in favorite
Optical switches Factory
Optical switches office
Optical switches product line
fiber optic switch product line
Optical switches engineers

Mini M1×3 or M1×4 Fiber Optic Switch

optic switch ,fiber switch  link

sales2@fiberer.com
Optical switches,fiber optic switch - Global supplier
Optical-switches.com Copyright All
