2×2F Fiber Optic Switch, 2×2F Optical Switch
Name:

2X2F Fiber Optic Switch

Class:
Fiber Optic Switch
Type:
2X2F Fiber Optic Switch

2×2F Fiber Optic Switch, 2×2F Optical Switch Specification

Click here to View Formal Price(151 pcs are paid)

Fiberer Rohs

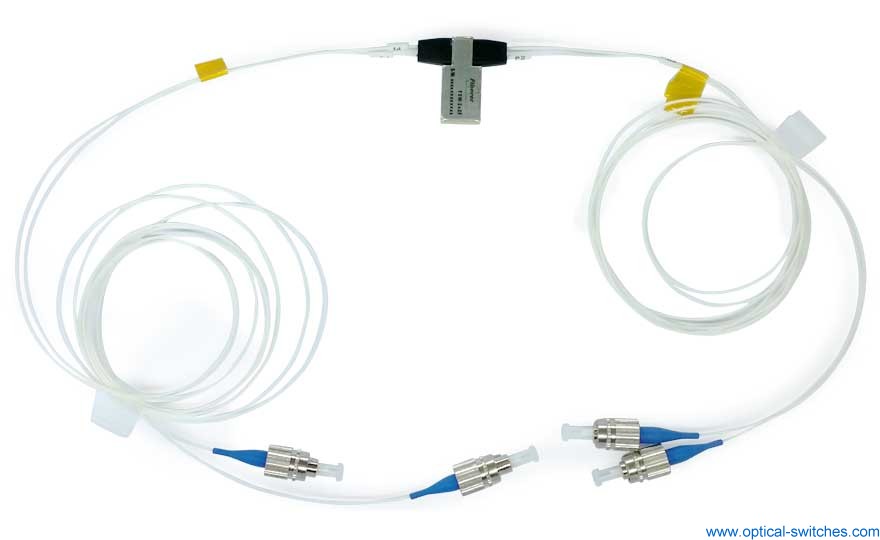

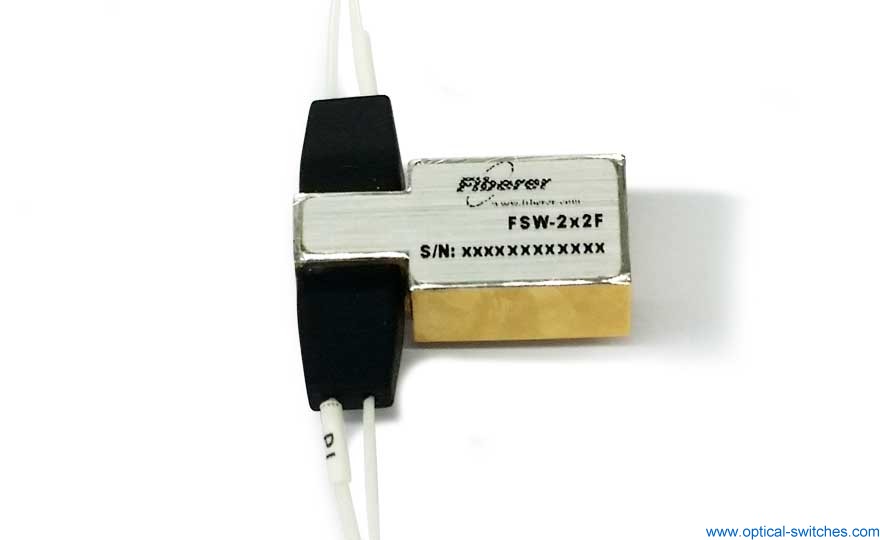

2x2F Fiber Optic Switch

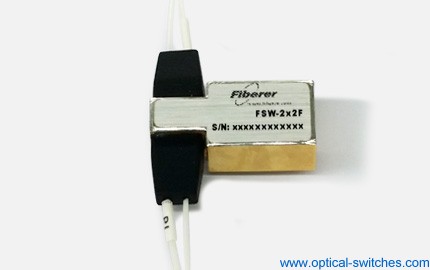

2x2F Optical Switches   2x2F Optical switch

2X2F Fiber Optic Switch, 2X2F Optical Switch - SM Specification

Parameters

Unit

Fiberer-FSW-2X2F-S

Wavelength

Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1,2

dB

Typ: 0.8 Max: 1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating

Voltage

V

3.0 or 5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

8

Optical Power

mW

≤500

Operating

Temperature

-20 ~ +70

Storage

Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

14

Dimension

mm

(L)27.0X(W)12.6X(H)8.2 ±0.2

Note: Within operating temperature and SOP.

Excluding Connectors.

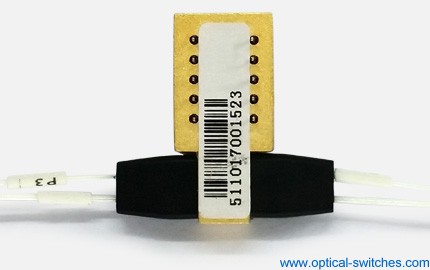

2X2F Fiber Optic Switch, 2X2F Optical Switch- Pin Configurations

Type

State

Optical

Route

Electric Drive

Status Sensor

2X2F



Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

A

P1-P2

P3-P4

--

--

GND

V+

Close

Open

Open

Close

&, amp;, lt;, /T, D>, ,

B

P1-P4

P3-P2

V+

GND

--

--

Open

Close

Close

Open

Non

-latching

A

P1-P2

P3-P4

--

--

--

--

Close

Open

Open

Close

B

P1-P4

P3-P2

V+

--

--

GND

Open

Close

Close

Open

2X2F Fiber Optic Switch, 2X2F Optical Switch - SM Optical Route

State A

State B

2X2 Optical Switch Optical Route State A

2X2 Optical Switch Optical Route State B

2X2F Fiber Optic Switch, 2X2F Optical SwitchSM Dimension

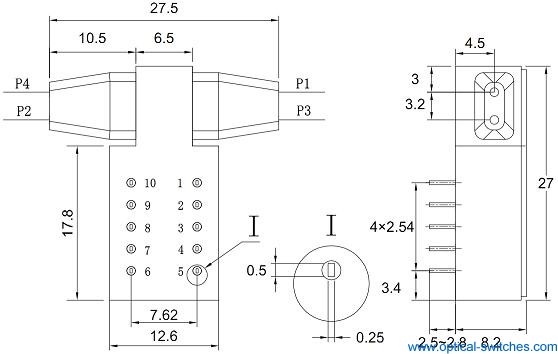

2X2 Optical Switch Dimension

2X2F Fiber Optic Switch, 2X2F Optical Switch- Electrical Specification

Specifications

Voltage

Current

Resistance

5V latching

4.5~5.5 V

36~44 mA

125 Ω

5V non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V latching

2.7~3.3 V

54~66 mA

50 Ω

3V non-latching

2.7~3.3 V

39~47 mA

70 Ω


2x2 Fiber Switch Production   2X2 Optic Switch Making   2x2 Optical switch Engineer   2x2 Fiber Optic Switch Test




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.

Order Now:
 2×2F Fiber Optic Switch, 2×2F Optical Switch   (151 pcs are paid)

**Please click 'getOrder' or 'AddToCart' button to get the order(invoice) document directly.
**Shipment charge and lead time will be signed clearly in the invoice after finishing the order.
Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews

Description Please Select: Formal Price Qty. AddToCart
Optical Switch, 2×2F, 3V, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Optical Switch, 2×2F, 3V, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Fiber Switch, 2×2F, 3V, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Fiber Switch, 2×2F, 5V, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Fiber Optic Switch, 2×2F, 5V, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Fiber Optic Switch, 2×2F, 5V, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen
