1x4 1x8 1x16 fiber optic Switch module
Name:

1x4 1x8 1x16 fiber optic Switch module

Class:
Optial Switch Module
Type:
1x4 1x8 1x16 fiber optic Switch module

1x4 1x8 1x16 fiber optic Switch module Specification

Click here to View Formal Price(432 pcs are paid)

Fiberer Rohs

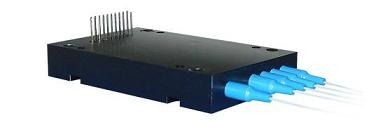

1x4 1x8 1x16 optical switch module
Features:
Wide Wavelength Range
Low Back Reflection
High Reliability, High dependability
Simple control
Unique Patented Technology
No glue in the route
Applications:
Switching in Optical
System Monitoring
R&D in Laboratory
FSW 1x4 1x8 1x16 Optical Switch, which is famous for its high performance, has a small dimension ,.It is an ideal Component for OADM OXC system monitoring and error protection. It could be easy to integrate into a high density optical communication system.
Specifications
Parameters
SW-1x4, 1x8, 1x16
Wavelength Range nm nm
(1260~1620nm) other
850, 1310 & 1490 & 1550 (SM)
535~980(MM)
Insertion Loss (1x4) dB
Typ:1.0
Max:1.2
Typ:1.2
Max:1.5
Typ:1.2
Max:1.5
Insertion Loss (1x8) dB
Typ:1.5
Max:1.8
Typ:1.8
Max:2.0
Typ:1.8
Max:2.0
Insertion Loss (1x16) dB
Typ:2.0
Max:2.4
Typ:2.4
Max:2.6
Typ:2.4
Max:2.6
PDL dB
≤0.05
Return Loss dB
SM≥50, MM≥30
WDL dB
≤0.25
Cross-Talk dB
SM≥55, MM≥35
Repeatability dB
≤±0.02
Operating Voltage v
5.0
Durability(Life) times
≥107
Switching Time ms
≤8
Transmission Power mW
≤500
Operating Temperature ��
-20~+70
Storage Temperature ��
-40~+85
Dimension mm
1x4(90x58x15)
1x4(90x58x15)
1x4(90x58x15)





































Dimension(mm)

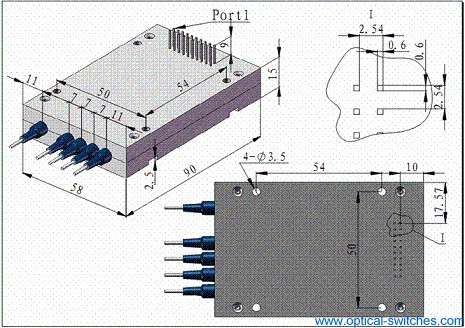

1x4 Optical Switch Module size (mm)
1-4 Switch module size
1x4 Optical Switch Pins Defining:
Pin Number
Name
Input or Output
Function
1
D0
Input
Port Selection Pin 1 (TTL signals)
2
D1
Input
Port Selection Pin 2 (TTL signals)
3
NC
No Connect
4
NC
No Connect
5
/EN
Enable (Input)
6
NC
No Connect
7
VCC
Input
+5.0V Power Supply (TTL Power)
8
GND
Input
Power Ground
9
NC
No Connect
10
NC
No Connect
11
NC
No Connect
12
NC
No Connect
13
S0
Inquiring status values 0 (TTL signals)
14
S1
Inquiring status values 1(TTL signals)
15
NC
No Connect
16
NC
No Connect
17
NC
No Connect
18
NC
No Connect
19
NC
No Connect
20
NC
No Connect
1x4 Optical Switch Control
Input Signals
The Selected Path
D1
Output Signals
D1
D0
S1
S0
0
0
Input->Output 1
0
0
0
1
Input->Output 2
0
1
1
0
Input->Output 3
1
0
1
1
Input->Output 4
1
1
Default : Input->Output 4

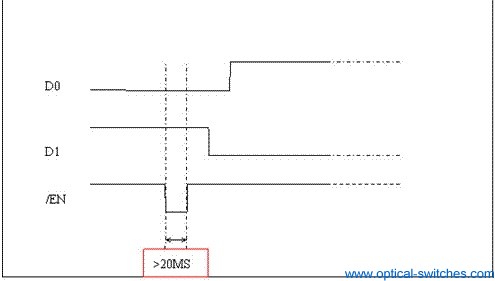

1x4 Optical Switch switching sequence chart
1x4 Optical Switch switching sequence chart

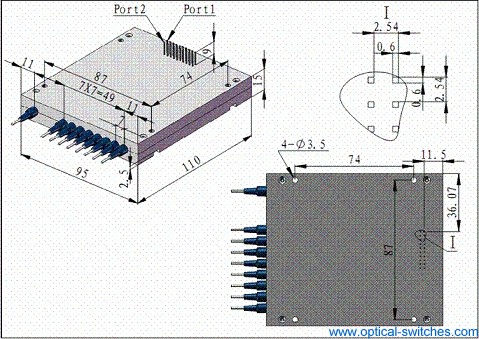

1x8 Optical Switch Module Size (mm)
1��8 Optical Switch Module Size
1x8 Optical Switch Pins Defining:
Pin Number
Name
Input or Output
Function
1
D0
Input
Port Selection Pin 1 (TTL signals)
2
D1
Input
Port Selection Pin 2 (TTL signals)
3
D2
Input
Port Selection Pin 3 (TTL signals)
4
NC
No Connect
5
/EN
Enable (Input)
6
NC
No Connect
7
VCC
Input
+5.0V Power Supply (TTL Power)
8
GND
Input
Power Ground
9
NC
No Connect
10
NC
No Connect
11
NC
No Connect
12
NC
No Connect
13
S0
Inquiring status values 0 (TTL signals)
14
S1
Inquiring status values 1 (TTL signals)
15
S2
Inquiring status values 2 (TTL signals)
16
NC
No Connect
17
NC
No Connect
18
NC
No Connect
19
NC
No Connect
20
NC
No Connect
1x8 Optical Switch Control
Input Signals
The Selected Path
D1
Output Signals
D2
D1
D0
S2
S1
S0
0
0
0
Input->Output 1
0
0
0
0
0
1
Input->Output 2
0
0
1
0
1
0
Input->Output 3
0
1
0
0
1
1
Input->Output 4
0
1
1
1
0
0
Input->Output 5
1
0
0
1
0
1
Input->Output 6
1
0
1
1
1
0
Input->Output 7
1
1
0
1
1
1
Input->Output 8
1
1
1
Default : Input->Output 8

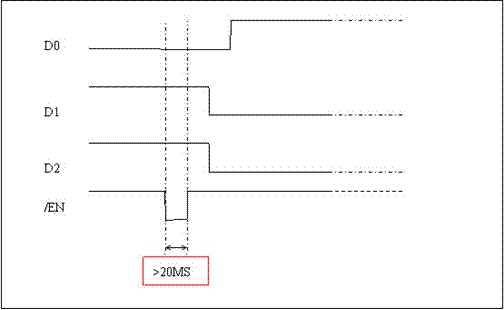

1x8 Optical Switch switching sequence chart
1x8 Optical Switch switching sequence chart

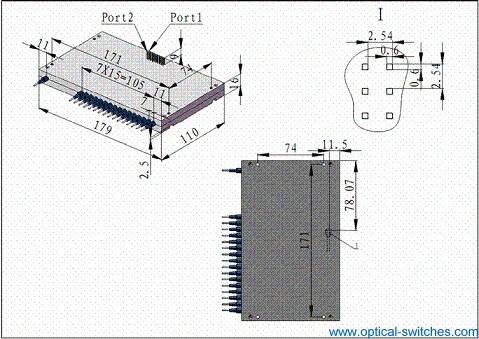

1x16 Optical Switch Module Size (mm)
1��16 Optical Switch Module Size
1x16 Optical Switch Pins Defining:
Pin Number
Name
Input or Output
Function
1
D0
Input
Port Selection Pin 1 (TTL signals)
2
D1
Input
Port Selection Pin 2 (TTL signals)
3
D2
Input
Port Selection Pin 3 (TTL signals)
4
D3
Input
Port Selection Pin 4 (TTL signals)
5
/EN
Enable (Input)
6
NC
No Connect
7
VCC
Input
+5.0V Power Supply (TTL Power)
8
GND
Input
Power Ground
9
NC
No Connect
10
NC
No Connect
11
NC
No Connect
12
NC
No Connect
13
S0
Inquiring status values 0 (TTL signals)
14
S1
Inquiring status values 1 (TTL signals)
15
S2
Inquiring status values 2 (TTL signals)
16
S3
Inquiring status values 3 (TTL signals)
17
NC
No Connect
18
NC
No Connect
19
NC
No Connect
20
NC
No Connect
1x16 Optical Switch Control
Input Signals
The Selected Path
Output Signals
D3
D2
D1
D0
S3
S2
S1
S0
0
0
0
0
Input->Output 1
0
0
0
0
0
0
0
1
Input->Output 2
0
0
0
1
0
0
1
0
Input->Output 3
0
0
1
0
0
0
1
1
Input->Output 4
0
0
1
1
0
1
0
0
Input->Output 5
0
1
0
0
0
1
0
1
Input->Output 6
0
1
0
1
0
1
1
0
Input->Output 7
0
1
1
0
0
1
1
1
Input->Output 8
0
1
1
1
Default : Input->Output 16













Input Signals
The Selected Path
Output Signals
D3
D2
D1
D0
S3
S2
S1
S0
1
0
0
0
Input->Output 9
1
0
0
0
1
0
0
1
Input->Output 10
1
0
0
1
1
0
1
0
Input->Output 11
1
0
1
0
1
0
1
1
Input->Output 12
1
0
1
1
1
1
0
0
Input->Output 13
1
1
0
0
1
1
0
1
Input->Output 14
1
1
0
1
1
1
1
0
Input->Output 15
1
1
1
0
1
1
1
1
Input->Output 16
1
1
1
1
Default : Input->Output 16

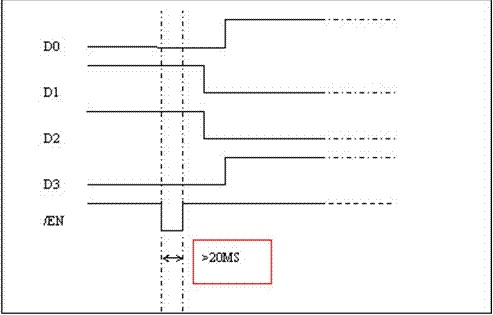

1x16 Optical Switch switching sequence chart
1��16 Optical Switch switching sequence chart
Ordering Information
SW-����-������-����-��-��
1. Wave length�� 85=850nm 3. Connector Type��FC��ST��SC��
13=1310nm 4. Fiber Type��S=SM��M=MM
15=1550nm 5. Fiber length��0.5M��1.0M��1.5M
Other
2. 1��N��number of optical channel

1x8 Optical Switch Line   1x4 Optical Switch Making   1x16 Fiber Optical Switch Engineer   1x16 Optical Switch components
