 Product >> Fiber Optic Switch >> 2X2A Optical Switch
2X2A Fiber Optic Switch,2X2A Optical Switch
Name:

2X2A Optical Switch

Class:
Fiber Optic Switch
Type:
2X2A Optical Switch

2X2A Fiber Optic Switch,2X2A Optical Switch Specification


Fiberer Rohs


2X2A Fiber Optic Switch,2X2A Optical Switch - Features




·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching


2X2A Fiber Optic Switch,2X2A Optical Switch - Applications

·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)

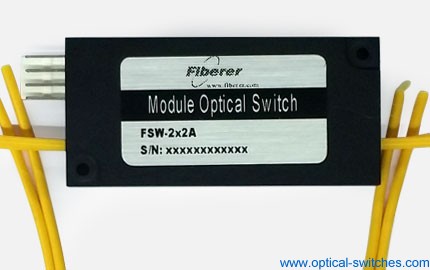

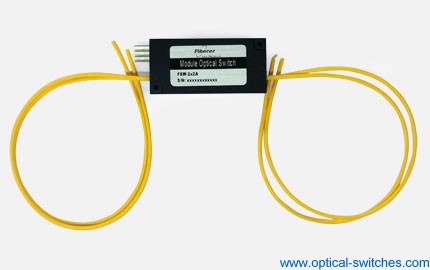

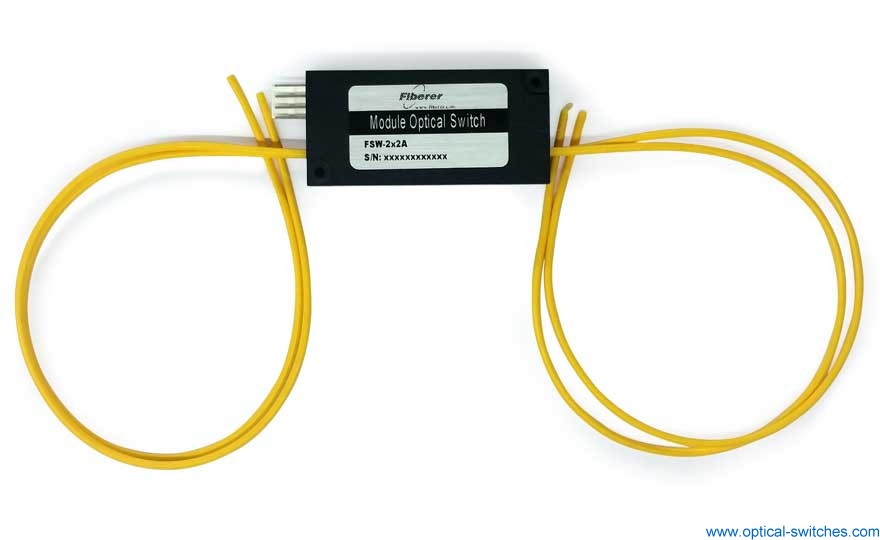

Fiberer-FSW-2X2A Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0X(W)26.0X(H)10.0mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

2x2 Optical Switch   2x2 Fiber Switch

2X2A Fiber Optic Switch,2X2A Optical Switch- Specifications

Parameters

Unit

Fiberer-FSW-2X2A

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 0.8    Max: 1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 60

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

25

Dimension

mm

(L)55.0X(W)26.0X(H)10.0 ±0.2

Note:1 Within operating temperature and SOP.
2 Excluding Connectors.


2X2A Fiber Optic Switch,2X2A Optical Switch - Pin Configurations

Type

State

Optical Route

Electric Drive

Status Sensor

2X2A



Pin 1

Pin 2

Pin 3-4

Non-latching

A

P1-P3,P2-P4

V+

GND

Open

B

P1-P4,P2-P3

--

--

Close


2X2A Fiber Optic Switch,2X2A Optical Switch - Optical Route

State A

State B

2x2 Optical Switch Optical Route State A

2x2 Optical Switch Optical Route State B

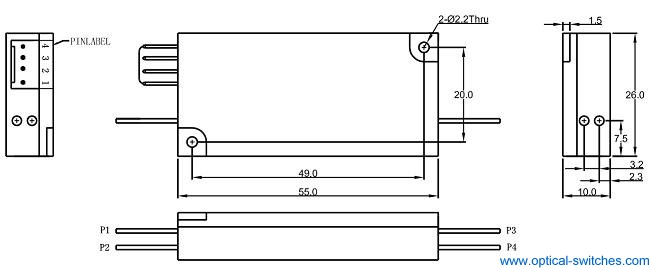

2X2A Fiber Optic Switch,2X2A Optical Switch- Dimension

2X2 Optical Switch Dimension


2X2A Fiber Optic Switch,2X2A Optical Switch - Electrical Specification

Specifications

Voltage

Current

Resistance

5V   non-latching

4.5~5.5 V

25~31 mA

178 Ω

3V   non-latching

2.7~3.3 V

42~51 mA

65 Ω


2X2A Fiber Optic Switch,2X2A Optical Switch - Ordering Information:
Fiberer
-FSW-2X2A-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

SM: SM, 9/125

M5:MM, 50/125

M6:MM, 62.5/125

X: Others

3: 3V

5: 5V


N:Non-latching

850: 850nm

1310: 1310nm

1550: 1550nm

1310/1550:1310/1550nm

X:Others

90:900um

20:2.0mm

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others

2x2 Optical Switch Production line   2X2 Fiber Switch Engineer   2x2 Fiber Optic Switch Package   2x2 Optical Switch Shipping box







Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.
