Bypass switch, Bypass optical switch Specification

Click here to View Formal Price(788 pcs are paid)

Fiberer Rohs


Bypass switch, Bypass optical switch- Features




·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching


Bypass switch, Bypass optical switch- Applications

·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)



Fiberer-FSW-2X2BA Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0X(W)30.0X(H)12.8mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

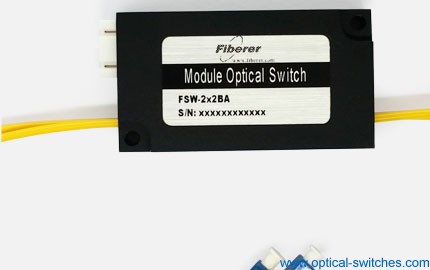

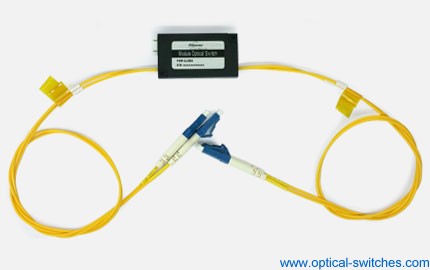

2x2 Bypass Optical Switch   2x2 Bypass Optic Switches

Bypass switch, Bypass optical switch- Specifications

Parameters

Unit

Fiberer-FSW-2X2BA

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

Typ: 0.8    Max: 1.0

Return Loss 1, 2

dB

≥ 50

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

25

Dimension

mm

(L)55.0X(W)30.0X(H)12.8 ±0.2

Note:1 Within operating temperature and SOP.

2 Excluding Connectors.


Bypass switch, Bypass optical switch- Pin Configurations

Type

State

Optical Route

Electric Drive

2X2BA



Pin 1

Pin 2

Pin 3

Pin 4

Latching

A

P1-P3

V+

GND

--

--

B

P1-P4, P2-P3

--

--

GND

V+


Type

State

Optical Route

Electric Drive

Status Sensor

2X2BA



Pin 1

Pin 2

Pin 3-4

Non-latching

A

P1-P3

--

--

Open

B

P1-P4,P2-P3

V+

GND

Close


Bypass switch, Bypass optical switch- Optical Route

State A

State B

2X2 Bypass Optical Switch Optical Route State A

2X2 Bypass Optical Switch Optical Route State B



Bypass switch, Bypass optical switch - Dimension

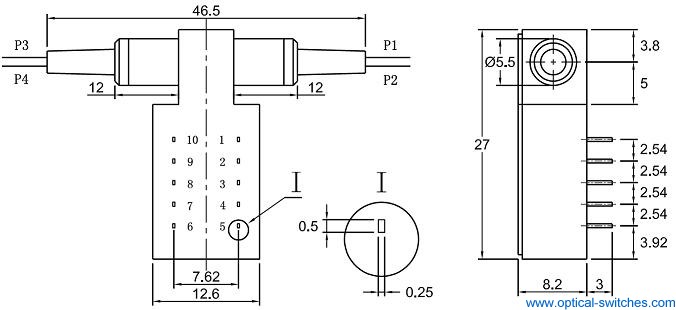

2X2 Bypass Optical Switch Dimension


Bypass switch, Bypass optical switch- Electrical Specification

Specifications

Voltage

Current

Resistance

5V   latching

4.5~5.5 V

36~44 mA

125 Ω

5V   non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V   latching

2.7~3.3 V

54~66 mA

50 Ω

3V   non-latching

2.7~3.3 V

39~47 mA

70 Ω


Bypass switch, Bypass optical switch- Ordering Information: Fiberer-FSW-2X2BA-A-B-C-D-E-F-G


A

B

C

D

E

F

G

Fiber Type

Operating
Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

SM: SM,9/125

M5:MM,50/125

M6:MM,62.5/125

X:Others

3: 3V

5: 5V


L:Latching

N:Non-latching

850:850nm

1310:1310nm

1550:1550nm

1310/1550:1310/1550nm

X:Others

90:900um

20:2.0mm

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others
