Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch
Name:

Mini single-ended Optical Switch

Class:
Mini Optical Switch
Type:
Mini single-ended Optical Switch

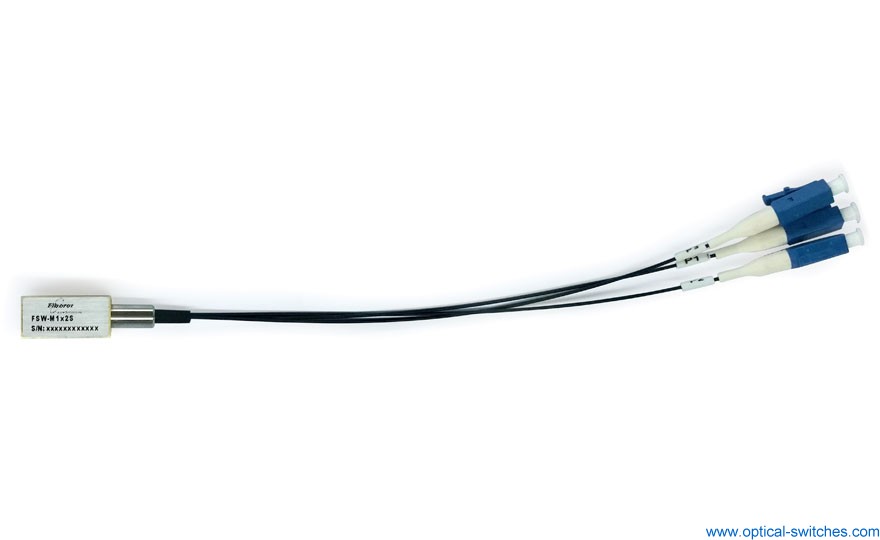

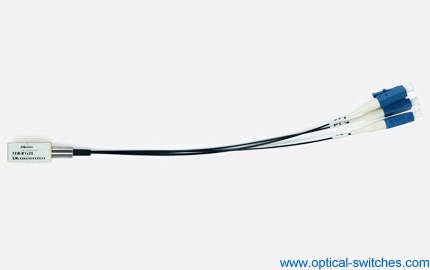

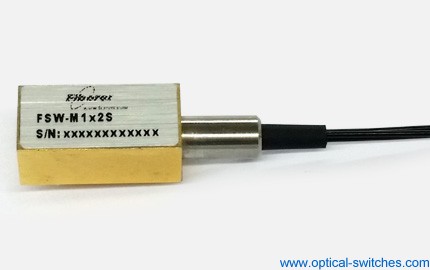

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch Specification

Click here to View Formal Price(994 pcs are paid)

Fiberer Rohs
Mini single-ended Optical Switch   Mini Single-ended Fiber Optic Switch

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch- Specifications
Parameters
Unit
M1×1S or M1×2S or M2×2BS
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
M1×1S
Typ: 0.4   Max: 0.6
M1×2S or M2×2BS
Typ: 0.6   Max: 0.8
Return Loss 1, 2
dB
 SM ≥ 50
Crosstalk 1
dB
 SM ≥ 55
PDL
dB
≤0.05
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3.0  or  5.0
Durability
Cycles
≥ 10 Million
Voltage Pluse Width
(Latching)
ms
≥ 20
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
-20 ~ +70
Storage Temperature
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g
13
Dimension
mm
(L )20×(W)9.5×(H)8.5 ±0.2
Note:   1  Within operating temperature and SOP.
2  Excluding Connectors.

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch- Pin Configurations
Type
State
Optical Route
Electric Drive
Status Sensor
M1×1S


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Latching
A
P1-P2
5V Pulse
GND
Open
Close
Close
Open
B
Light close
GND
5V Pulse
Close
Open
Open
 Close
Non -latching
A
P1-P2
5V Pulse
GND
Open
Close
Close
Open
B
Light close
--
--
Close
Open
Open
Close
Type
State
Optical Route
Electric Drive
Status Sensor
M1×2S


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7









Latching
A
P1-P2
5V Pulse
GND
Open
Close
Close
Open
B
P1-P3
GND
5V Pulse
Close
Open
Open
 Close
Non -latching
A
P1-P2
5V Pulse
GND
Open
Close
Close
Open
B
P1-P3
--
--
Close
Open
Open
Close

Type
State
Optical Route
Electric Drive
Status Sensor
M2×2BS


Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Latching
A
P1-P4,P2-P3
5V Pulse
GND
Open
Close
Close
Open
B
P1-P3
GND
5V Pulse
Close
Open
Open
 Close
Non -latching
A
P1-P4,P2-P3
5V Pulse
GND
Open
Close
Close
Open
B
P1-P3
--
--
Close
Open
Open
Close

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch- Optical Route
M1×1S
State A
State B
Mini 1X1 single-ended Fiber Optic Switch Optical Route
Mini 1X1 single-ended Optical Switch Optical Route
M1×2S
State A
State B
Mini 1X2 single-ended Fiber Optic Switch Optical Route
Mini 1X2 single-ended Optical Switch Optical Route
M2×2BS
State A
State B
Mini 2X2 bypass single-ended Fiber Optic Switch Optical Route
Mini 2X2 bypass single-ended Optical Switch Optical Route

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch - Dimension

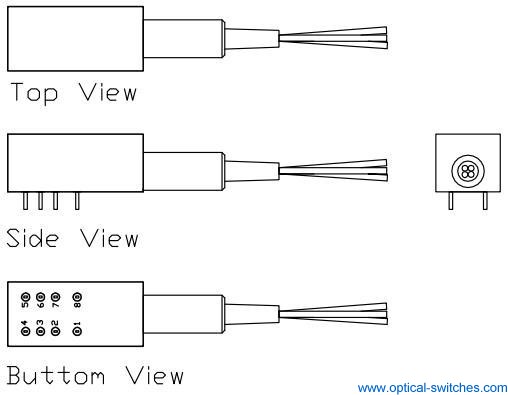

Mini single-ended Optical Switch Dimension

       250um: P1:White、P2:Black、P3:Red 、P4:Blue
                 900um: P1、P2、P3、P4:Black


Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch- Electrical Specification
Specifications
Voltage
Current
Resistance
5V   latching
4.5~5.5 V
22.2(±10%) mA
202.5(±10%) Ω
5V   non-latching
4.5~5.5 V
31(±10%) mA
145(±10%) Ω
3V   latching
2.7~3.3 V
33.3(±10%) mA
90(±10%) Ω
3V   non-latching
2.7~3.3 V
46.7(±10%) mA
64.2(±10%) Ω

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch- Ordering Information:
Fiberer-FSW-A-B-C-D-E-F-G-H
A
B
C
D
E
F
G
H
Optical Switch Type
Fiber Type
Operating Voltage
Switch Type
Test Wavelength
Tube Type
Fiber Length
(Include connector)
Connector
M1×1S
M1×2S
M2×2BS
SM: SM, 9/125
X: Others
3: 3V
5: 5V
L: Latching
N: Non-latching
1310: 1310nm
1550: 1550nm
1310/1550:1310/1550nm
X:Others
25:250um
90:900um
X: Others
05: 0.5m±5cm
10: 1.0m±5cm
15: 1.5m±5cm
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
LP: LC/PC
LA: LC/APC
X: Others

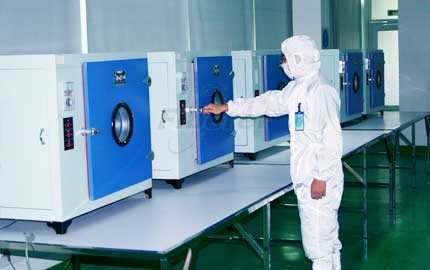

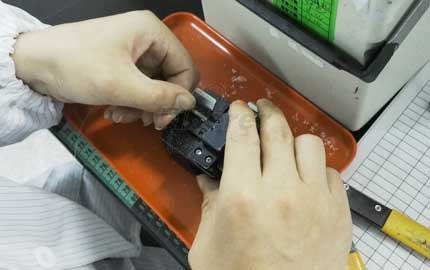

Mini Single-ended Optic Switch Factory   Mini Single-ended Optical Switch testing   Mini Single-ended Fiber Optic Switch Engineer   Mini Single-ended Optic Switches components

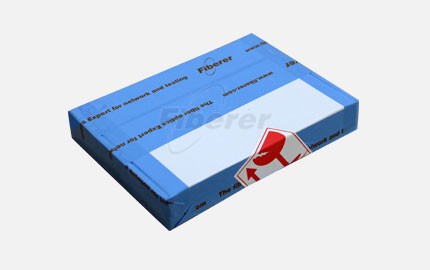

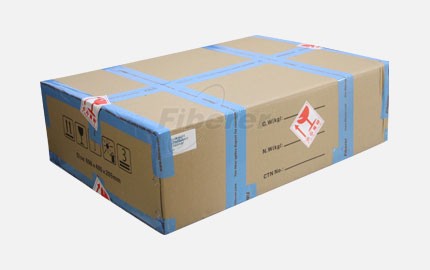

Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.

Order Now:
 Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch   (994 pcs are paid)

**Please click 'getOrder' or 'AddToCart' button to get the order(invoice) document directly.
**Shipment charge and lead time will be signed clearly in the invoice after finishing the order.
Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews

Description Please Select: Formal Price Qty. AddToCart
Mini Optical Switch, single-ended, 1x1, 3V, Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 3V, Non-Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 3V, Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 3V, Non-Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 3V, Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 3V, Non-Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Non-Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Non-Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x1, 5V, Non-Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 70/pcs.
1 pcs, USD 75/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Non-Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Non-Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 3V, Non-Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Non-Latching, 1310nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Non-Latching, 1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 1x2, 5V, Non-Latching, 1310nm/1550nm
Weight: 0.15 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 90/pcs.
1 pcs, USD 98/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 3V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Non-Latching, 1310nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Non-Latching, 1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

Mini Optical Switch, single-ended, 2x2B, 5V, Non-Latching, 1310nm/1550nm
Weight: 0.2 kg/pcs
Delivery: within 2 weeks


Pigtail Style:

Fiber Type:

Fiber Length:

InOut Connector:
Part Number (P/N) and Remark

100 pcs, Apply for VIP
10 pcs, USD 140/pcs.
1 pcs, USD 150/pcs.
FOB ShenZhen

If not vote,please vote,thanks!
What do you think of fiberer?
Price is good and competitive.
Price need to be lower.
Order is convenient on website.
Order is slow and not convenient on website.
Fiberer is trusty.
I need to know more from profile.


Print   |    Add in favorite
Optical switches Factory
Optical switches office
Optical switches product line
fiber optic switch product line
Optical switches engineers

Mini single-ended Fiber Optic Switch,Mini single-ended Optical Switch

optic switch ,fiber switch  link

sales2@fiberer.com
Optical switches,fiber optic switch - Global supplier
Optical-switches.com Copyright All
