Free Space Isolator,Free Space Optical Isolator Specification
Features Applications
•High isolation and low •Optical transmitter
insertion loss •Laser diode package
•Polarization dependent
•Compact size
•RoHS 6/6 compliant
Free Space Isolator ,Free Space Optical Isolator Specifications (Standard) Single Stage
Parameters
Unit
P Grade
Center Wavelength (λc)
nm
1310 or 1550 and CWDM
Peak Isolation (λ at 25°C)
Min
dB
40
Bandwidth Isolation (λc±15nm at 25°C)
Min
dB
32
Insertion Loss (λ at 25°C)
Max
dB
0.20
Bandwidth Insertion Loss(λc±15nm at 25°C)
Max
dB
0.30
Clear Aperture
mm
Φ0.9 or others
Optical Power
Max
mW
300
Operating Temperature
℃
-40 to +85
Storage Temperature
℃
-40 to +95
Free Space Isolator ,Free Space Optical Isolator Specifications (Standard) Dual Stage
Parameters
Unit
P Grade
Center Wavelength (λc)
nm
1310 or 1550 and CWDM
Peak Isolation (λc at 23°C)
Min
dB
55
Bandwidth Isolation (λc±30nm at 23°C)
Min
dB
45
Insertion Loss (λc at 23°C)
Max
dB
0.40
Bandwidth Insertion Loss(λc±30nm at 23°C)
Max
dB
0.50
Clear Aperture
mm
Φ0.9 or others
Optical Power
Max
mW
300
Operating Temperature
℃
-40 to +85
Storage Temperature
℃
-40 to +95

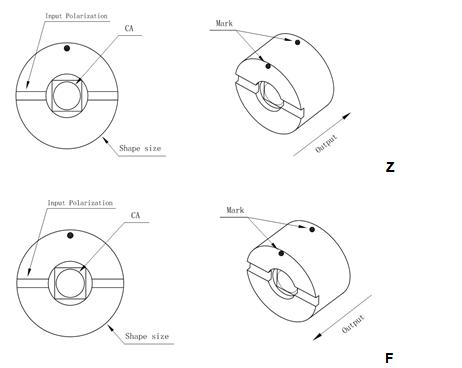

Free Space Isolator Dimension
Free Space Isolator Ordering Information:
FSI－A－B－C－D－E－F－G
A
B
C
D
E
F
G
Single/Dual Stage
λ
Grade
Center Wavelength
Size
CA
Angle
S: Single stage
D: Dualstage
Z: Positive
F: In reverse
P: P-grade
31: 1310nm
49: 1490nm
55: 1550nm
X:Customized
01:Φ2.5*L1.1mm
02:Φ2.5*L1.4mm
03:Φ2.5*L2.0mm
04:Φ2.99*L1.4mm
05:3.5*3.4*L1.3mm
06:Φ2.99*L3.0mm
07:Φ2.1*L1.25mm
08:2.5*2.15*L1.4mm
09:0.92*0.92mm(PGP)
10:Φ2.99*L2.0mm
11:Φ3.2*L1.4mm
12:4.0 *3.6*1.4mm
13:Φ1.8*L1.1mm
14:Φ2.99*L1.25mm
15:Φ2.2*L1.2mm
16:Φ1.5*L1.0mm
17:Φ2.5*L1.1(1.6) mm
18:Φ2.5*L1.1(PG) mm
X:Customized
40:CA≥Φ0.40mm
50:CA≥Φ0.50mm
60:CA≥Φ0.60mm
70:CA≥Φ0.70mm
80:CA≥Φ0.80mm
90:CA≥Φ0.90mm
X:Customized
0:0 degree
6:6degree
7:7degree
8:8degree
X:Customized
(mini order 5 pices)
