Optical Bypass Protection Equipment, OBP
Name:

Optical Bypass Protection Equipment (OBP)

Class:
Optical Switch Equipment
Type:
Optical Bypass Protection Equipment (OBP)

Optical Bypass Protection Equipment, OBP Specification


Fiberer Rohs

1 Optical Bypass Protection Equipment (OBP) overview

Optical Bypass Protection Equipment (OBP) is a kind of intelligent optical switch system which can bypass fault node in optical transmission network to avoid breakdown of whole network communication. It can automatically switch by detecting the nodes optical power or signal failure.

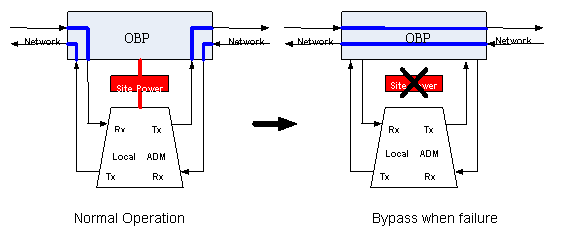

Optical Bypass Protection Equipment OperationIt will take function by switching in default route to bypass the node and keep the transmission.



u      System Features

Automatically instant switch

Real-time monitoring nodes output power

Reduce damage to network from nodes failure

Improve reliability of transmission network and operators service quality

Optionally switch between primary path and backup path without interruptting other nodes communication

2. Optical Bypass Protection Equipment (OBP) System

2.1 Working Theory

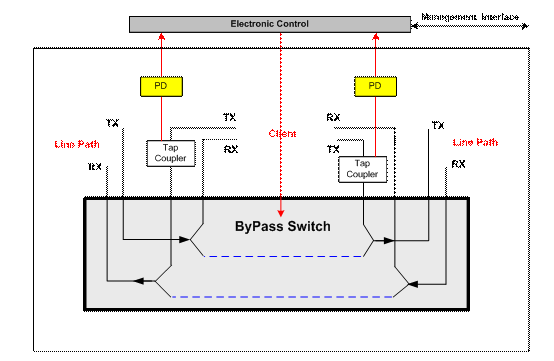

Optical Bypass Protection Equipment Working Theory  2.2 Optical Bypass Protection Equipment (OBP)specification

Parameters



Switching time (ms)

< 15

Standardizing wavelength (nm)

1310&1550

Power range

-50 +23 dBm

Accuracy

5

Insertion loss(dB)

<1.5

Crosstalk(dB)

> 50

Return loss(dB)

> 45

Maximum power tolerance (mW)

300

Power consumption(W)

< 5

Optical connectors

SC/PC

Supervision interface

RJ45RS-232( or RS-485 )

Working temperature  (C)

-10 55

Storage temperature (C)

-20 70

Power supply

DC36 72V

AC85 264V

Size

19'1U

2.3 Optical Bypass Protection Equipment (OBP)Ordering Information

Type

Description

GJ-OBP-1U-DS

Bi-direction bypass in single fiber,non-latching type

GJ-OBP-1U-SS

Bi-direction bypass in duplex fibers, non-latching type

GJ-OBP-1U-DS-L

Bi-direction bypass in single fiber, latching type

GJ-OBP-1U-SS-L

Bi-direction bypass in duplex fibers, latching type

2.4 Optical Bypass Protection Equipment (OBP)Equipment Outlook

1U panel

Optical Bypass Protection Equipment 1U

 Optical Bypass Protection Equipment 1U back side

2.5 Optical Bypass Protection Equipment (OBP)Application Example

Optical Bypass Protection Equipment Application Example



Optical Bypass Protection Equipment Engineer  Optical Bypass Protection Equipment Making







Packaging & Labeling

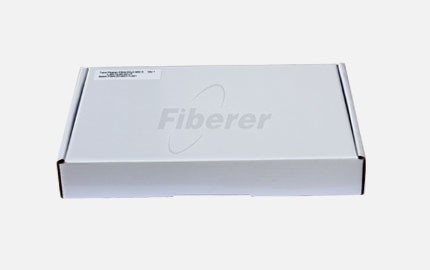

To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
