 Product >> Optial Switch Module >> Desktop optical switch (1xN NxM)
Desktop optical switch (1xN NxM)
Name:

Desktop optical switch (1xN NxM)

Class:
Optial Switch Module
Type:
Desktop optical switch (1xN NxM)

Desktop optical switch (1xN NxM) Specification


Fiberer Rohs

Desktop optical switch

Desktop optical switch (1xN to 1x128, NxM) is a kind of optical path control device which has the function of optical path control and switch. It can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with RS 232 port and Ethernet port.

Features
Low loss
High Reliability, High Stability
LCD Display
RS232 and Ethernet Interface
GPIB, DB25 Data Interface for Desktop
Applications
Ring Network
Optical Network Auto-monitor
Testing of Fiber, Optical Component

Performance

Parameters

Fiberer-FSW-1N-T

Wavelength range

dB

1<N12

16<N32

32<N64

64<N128

Typ:0.8 Max:1.0

Typ:1.0 Max:1.2

Typ:1.4 Max:1.6

Typ:1.9 Max:2.2

Operating Wavelength

dB

532~980

1260~1650

Insertion loss

dB

650/780/850/980

1310/1490/1550/1625

Return loss

dB

SM50MM30

Crosstalk

dB

SM55MM35

PDL

dB

0.05

WDL

dB

0.25

TDL

dB

0.25

Repeatability

dB

ܡ0.02

Lifetime

times

107

Transmission Power

mW

500

Switch time

ms

10

Operating Temperature

C

-20+70

Storage Temperature

C

-40+85

Power Supply

V

AC 85-264V,50/60Hz

Dimensions

mm

Desktop L320W245H110 (Up to 32 channel) customization is available.

































Product Image

Desktop Fiber Optic Switch

Ordering Information Fiberer-FSW-1N-T-A-B-C-D-E

N
A
B
C
D
E
Channel
Package Spec
Mode
Wavelength
Fiber type
Connector
1~128
1: 20245110mm
X: Other
S:SM
M:MM
85: 850nm
13: 1310nm
14: 1490nm
15: 1550nm
162: 1625nm
165: 1650nm
13/15:1310/1550nm
X: Other
5:50/1256:62.5/125
9: 9/125
X: Other
Inner Fiber Type
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: FC/APC
SP: ST/PC
SA: ST/APC
LP: LC/PC
LA: LC/APC
X: Other

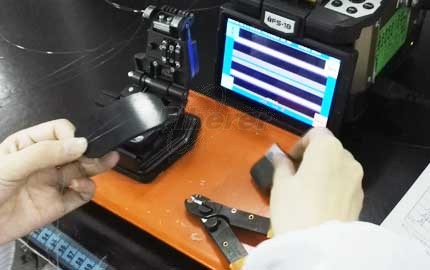

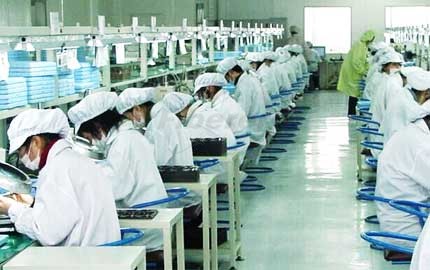

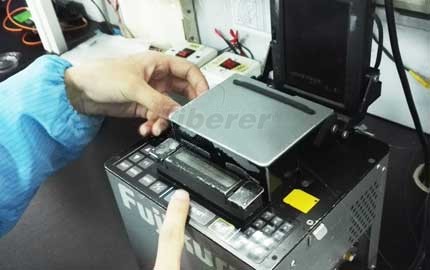

Desktop optical switch Factory   Desktop optical switch components testing   Desktop optical switch Engineer   Desktop optical switch Fiber components







Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
